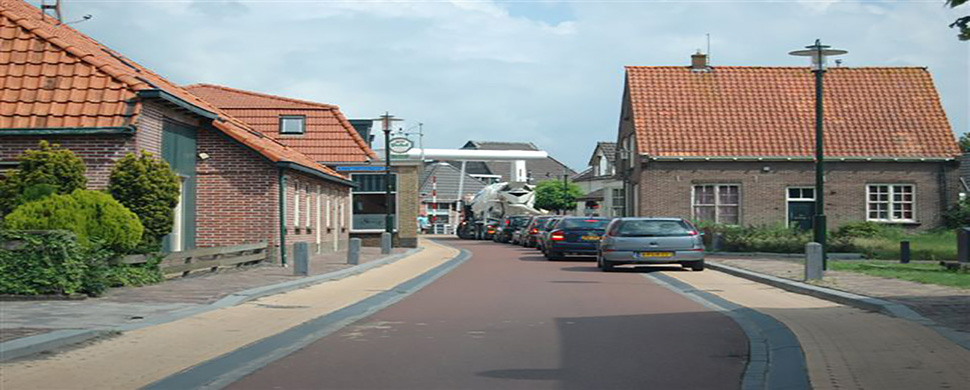

Main road ‘Hoofdstraat’ embankment

Road and railway embankment

Project name Main road 'Hoofdstraat' embankment Volume 400 m³ expanded clay 4-8 mm Location Ossenzijl Year 2012
Designer Technical department city of Ossenzijl Owner/Builder Local government

Problem/solution:

In Ossenzijl, located in the northern part of the Netherlands, the subsoil of the local main road needed to be reinforced with a material that would combine high strength with minimal settlement. Since the overall subsoil is the Netherlands is very bad and most of the local traffic uses this Hoofdstraat, a quick but yet solid solution was required. Also, draining capacity of the construction material to be used was very important. Therefor, a 45 cm thick layer of expanded clay was placed underneath the road.

Why Expanded Clay:

By lightening the embankment with expanded clay, subsoil strengthening and lengthy settlement was reduced. Expanded clay also reduces the risk of bearing capacity failure and increase the stability of the side slopes. Using free draining expanded clay within the road build-up with its high external porosity will break the capillary rise of ground water into the upper construction layers. It will also prevent streams of groundwater to cause damage to the embankment and can act as a balancing storage for temporary flooding.

Experience:

Since the ‘Hoofdstraat’ in Ossenzijl is a widely used road, the need for a strong but yet flexible material (tubes needed to be fitted into the road construction) was desirable.

Key Issues:

Drainage, Mechanical protection, Settlement, and Stability
