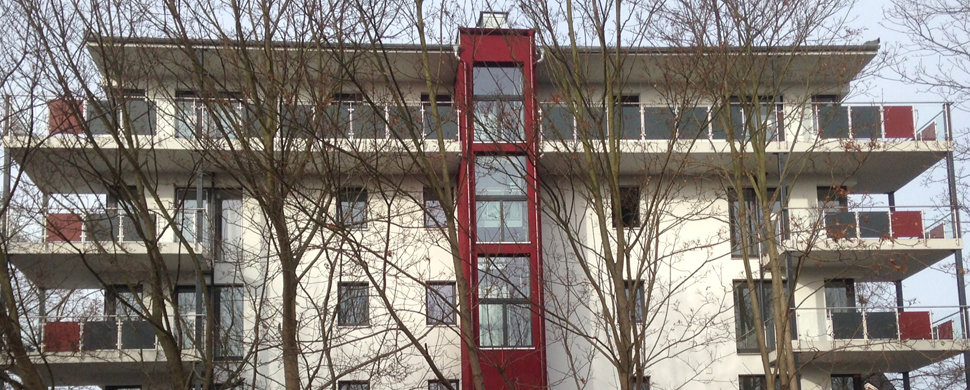

Residential building Brandenburg

Houses

External Walls | Internal Walls | Party Walls

Project Name Brandenburg Volume 11000 m² Year 2014-2016
Contractor engineer-company Ullrich, Brandenburg Architect engineer-company Willmann, Brandenburg Owner/Builder Mr. Schnabel + Mr. Mix, Brandenburg

General Description:

Built near a lake on the outskirts of Brandenburg City. intelligent heating technology based on hot air inside the hollow blocks. ideal for small families with 50-60 m² per apartment.

Why Expanded Clay:

Expanded clay masonry is used for external walls with expanded clay hollow blocks with thermal insulation inside with U-value 0,18 W/(m²K) to guarantee a very high thermal insulation in 425 mm thick (0,08 thermal conductivity). Party and internal walls are made of solid expanded clay blocks for good sound reduction. Thin joints of 1-2 mm allow a short construction time. The expanded clay blocks deliver a high fire resistance.

Key benefits:

low maintenance, long life time, fire safe, robustness, high thermal and acoustic performances.
