Single family house at Condeixa-a-Nova

Houses

External Walls

Volume 233,5 m2 Location Urbanização Quinta do barroso, 66; Sebal; Condeixa-a-Nova Year 2012 - 2014
Contractor Obriinfinita - Construção Civil, Lda. Architect biarq - arquitectura e engenharia Owner/Builder Single wall; non loadbearing

General Description:

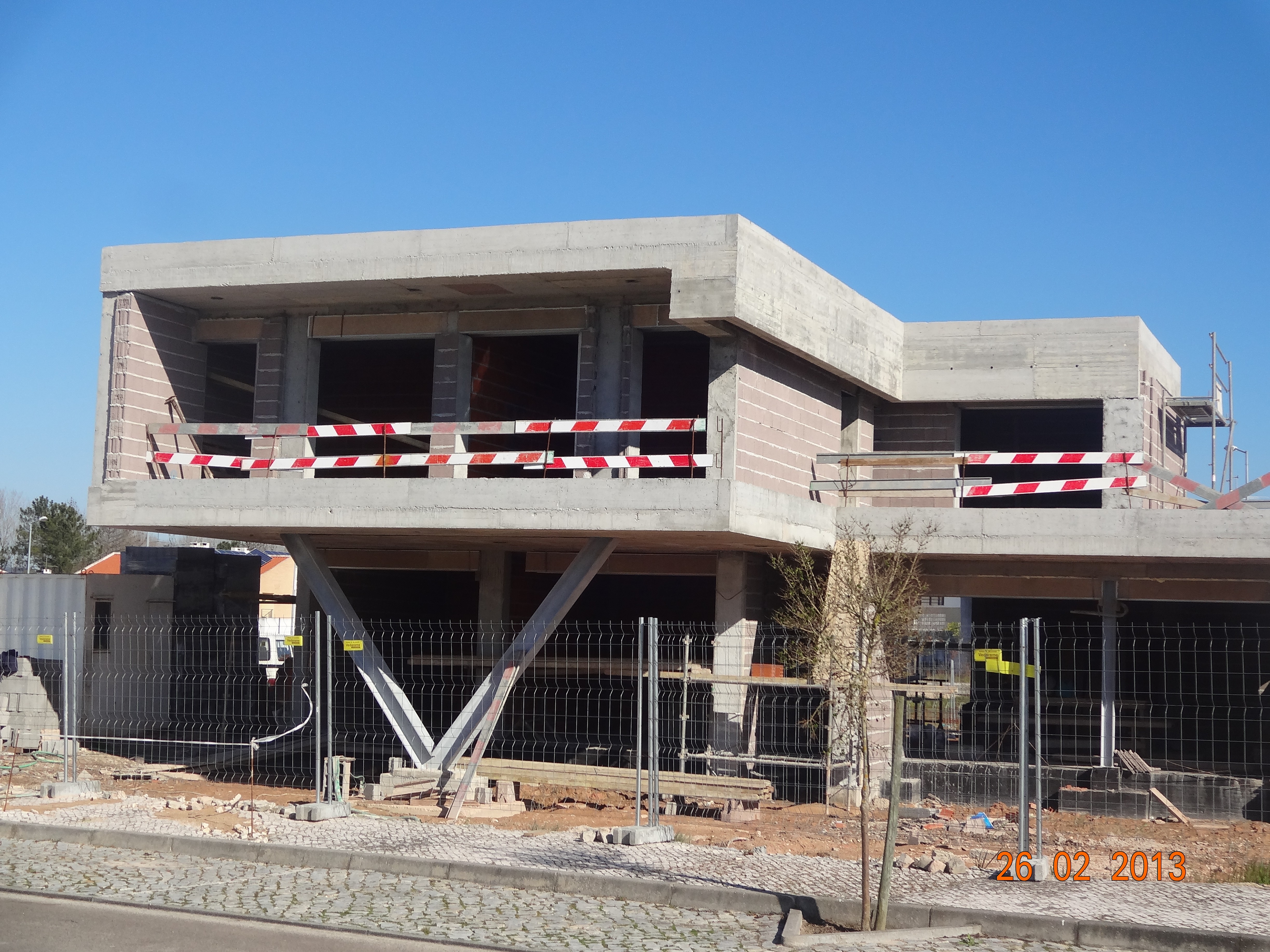

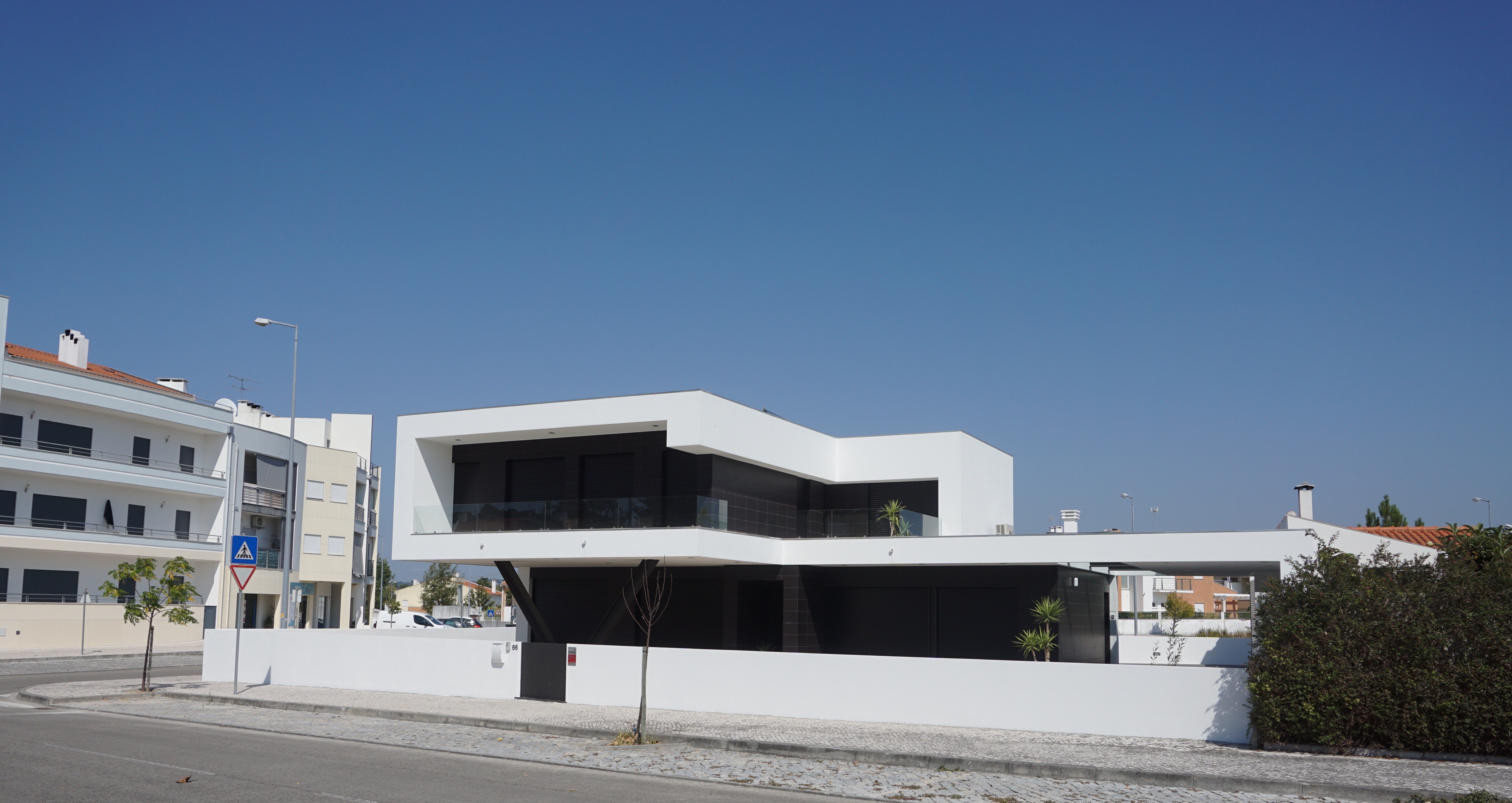

The project is a single family house with modern architecture located in an area of Portugal with the following thermal requirements for external walls: U=0,6 W/m²K (year of the project: 2012).

Why Expanded Clay:

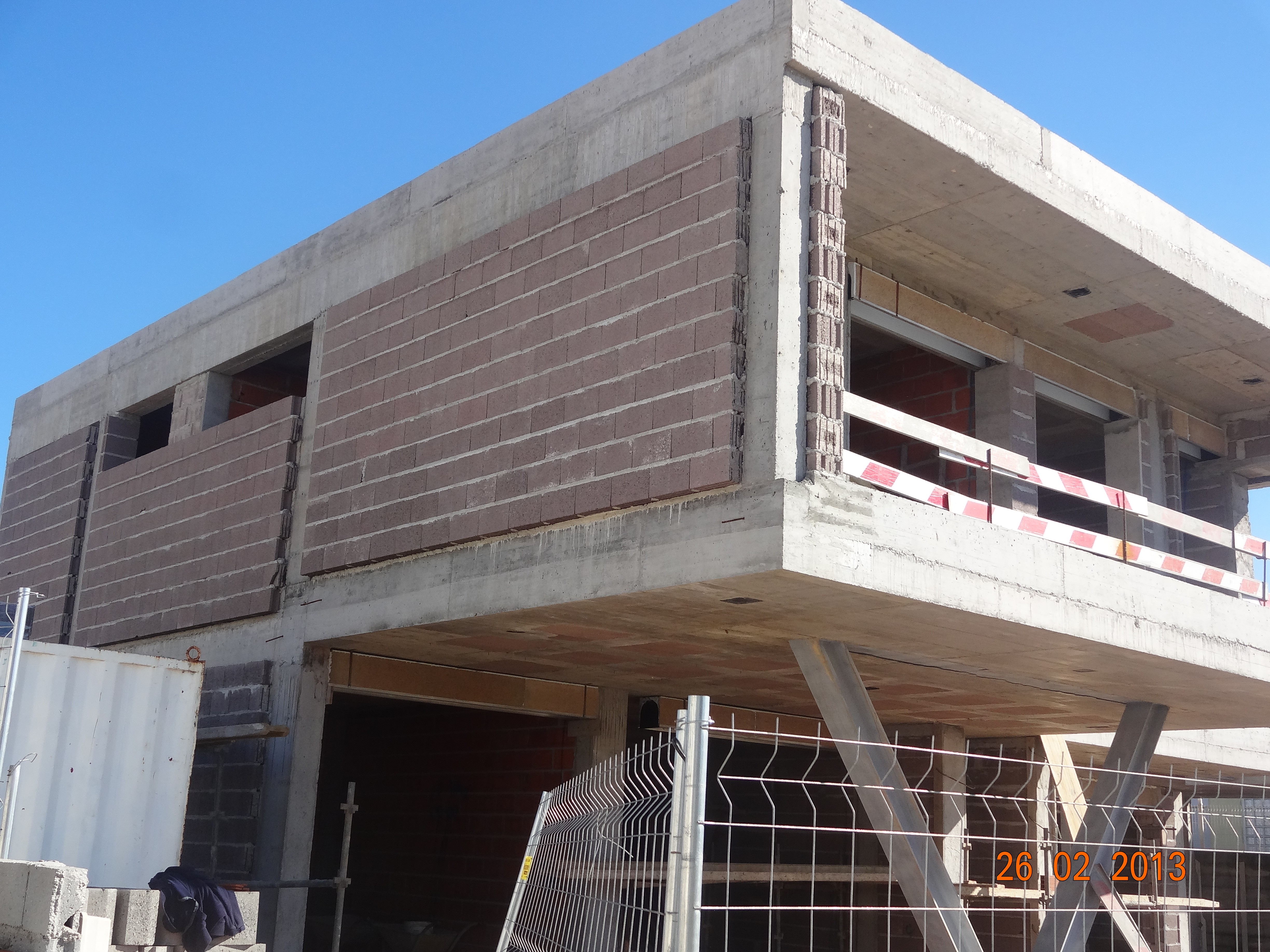

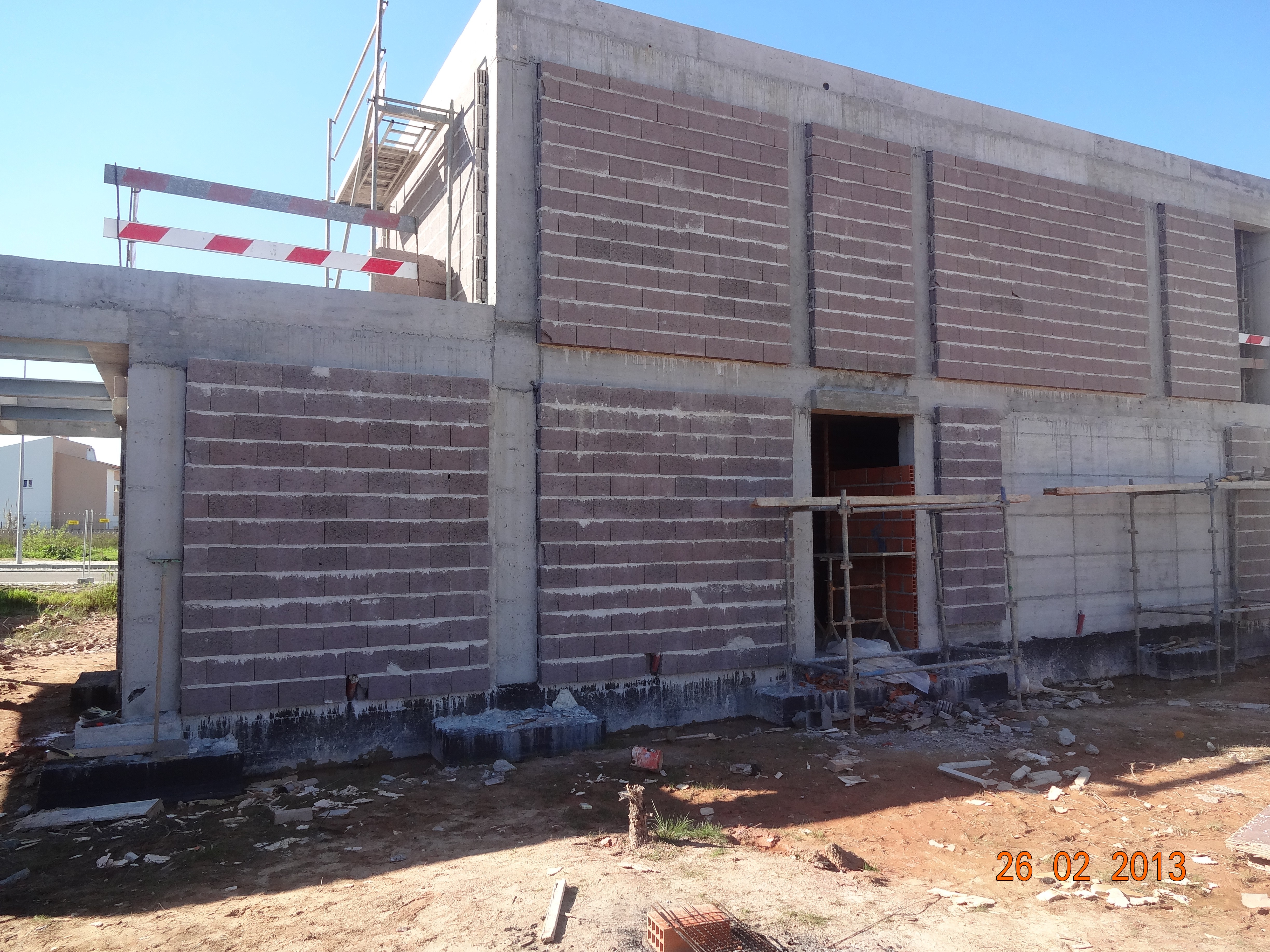

The traditional way to build external walls in Portugal is with a cavity infilled with insulation boards (EPS, XPS, …) and using clay brick units for both leaves (usually a 15cm brick for inner and 20 cm for outer). The use of thick single leaf envelope walls with lightweight concrete blocks (35 cm width) is an interesting solution and alternative to cavity walls as it in this area of the country, because is possible to achieve the same U value with a single wall. It’s quicker to build the wall and more ergonomic. In the thermal bridges (pillars and slabs) blocks wit a special design were used.

Key benefits:

Thermal performance; Save space; Save time.
